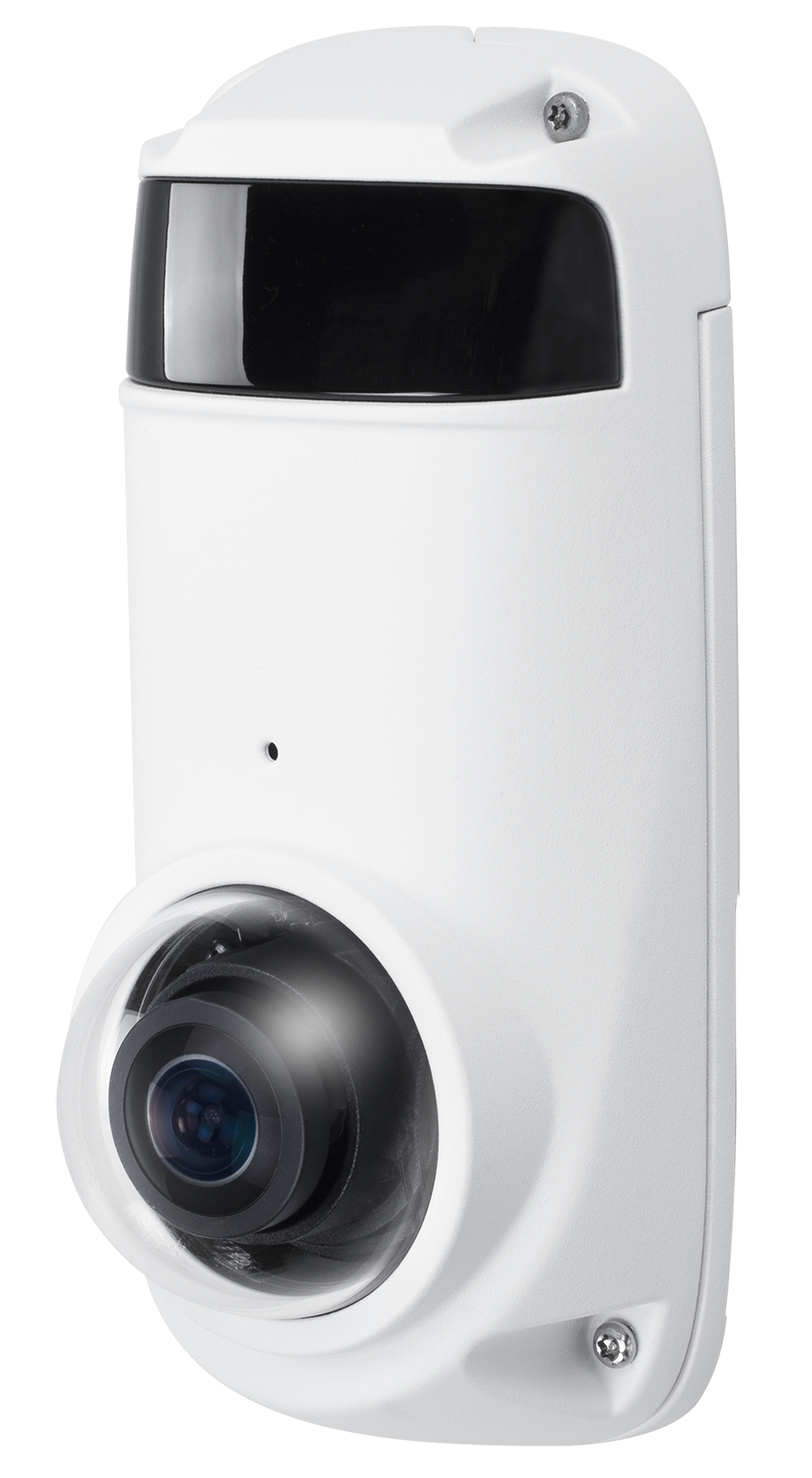

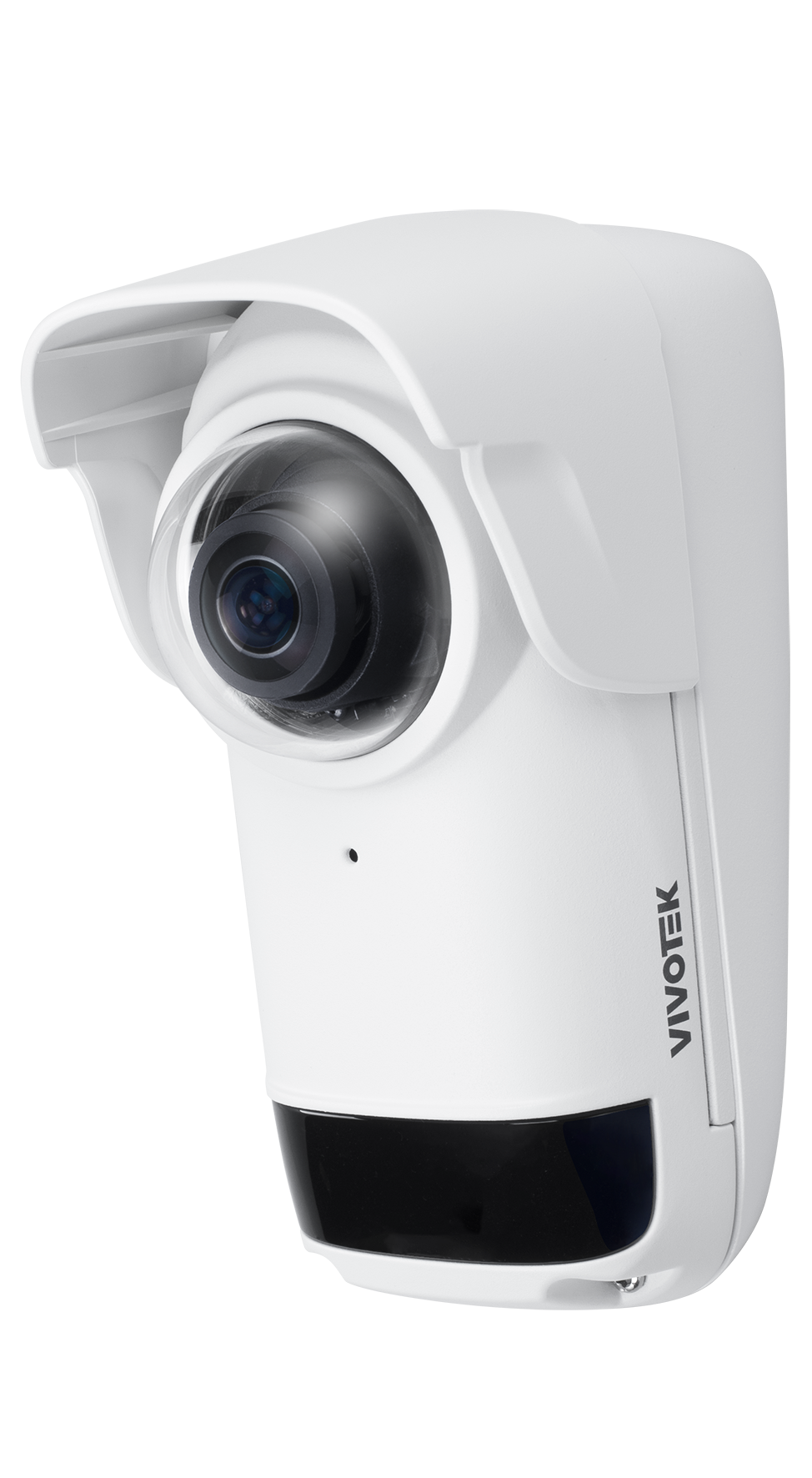

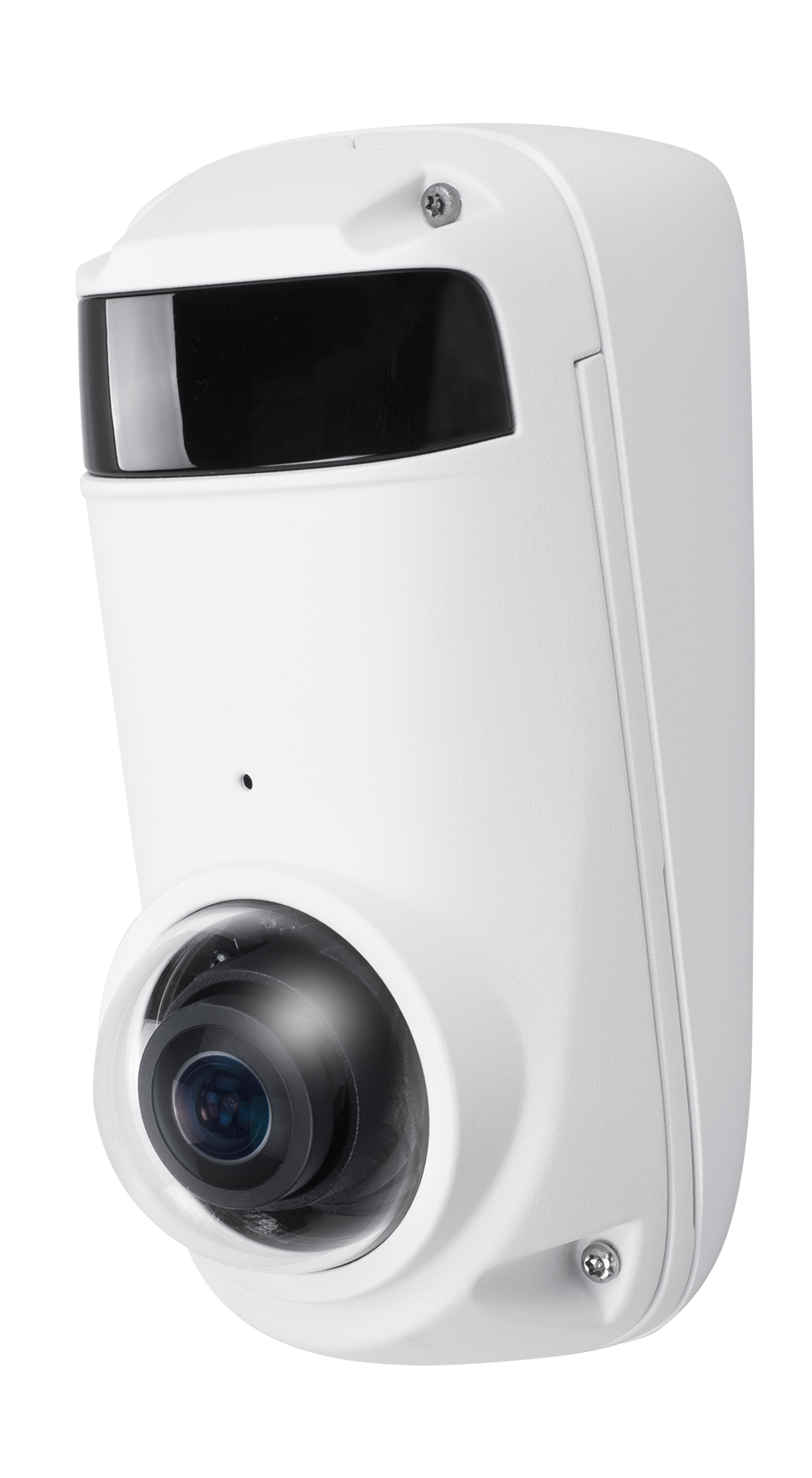

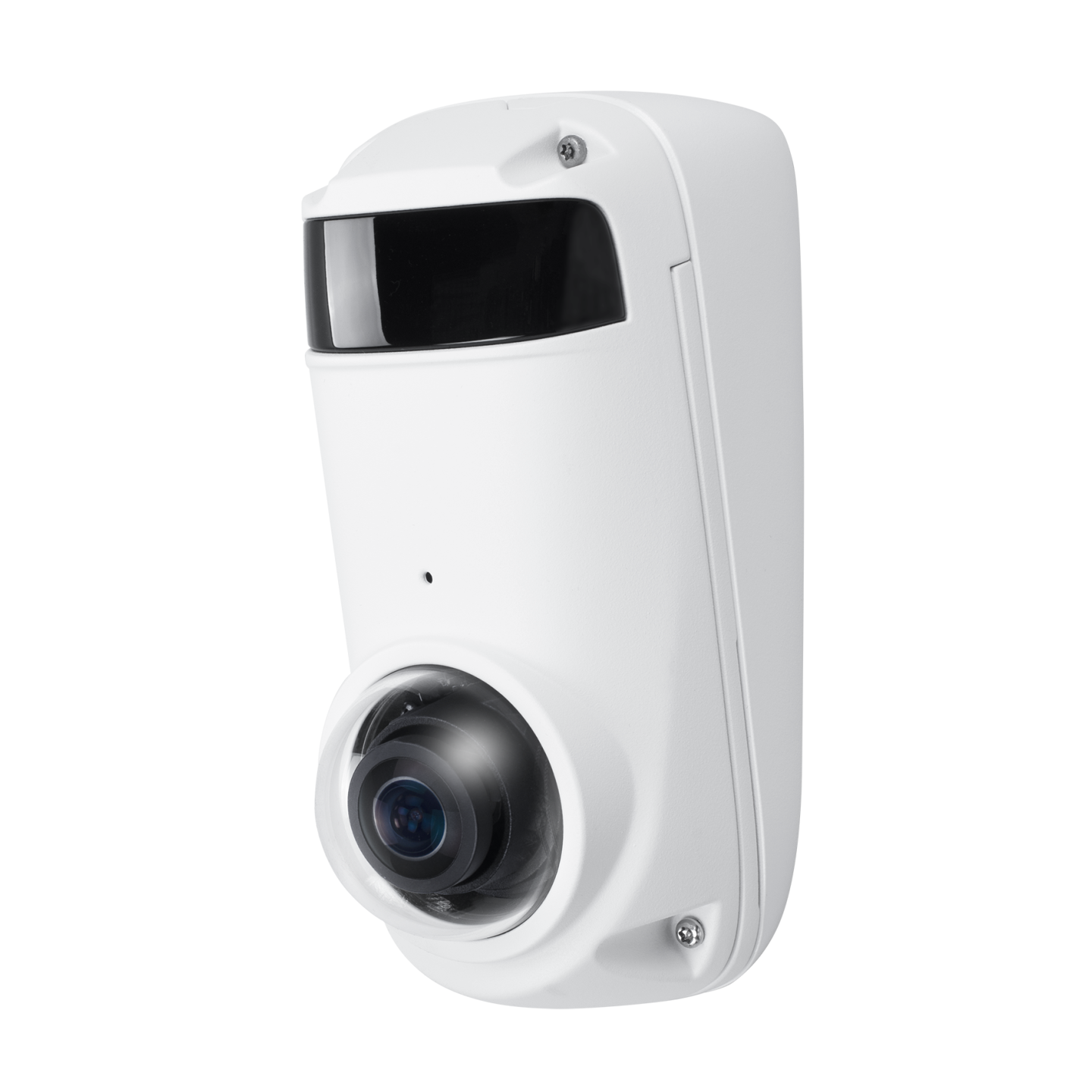

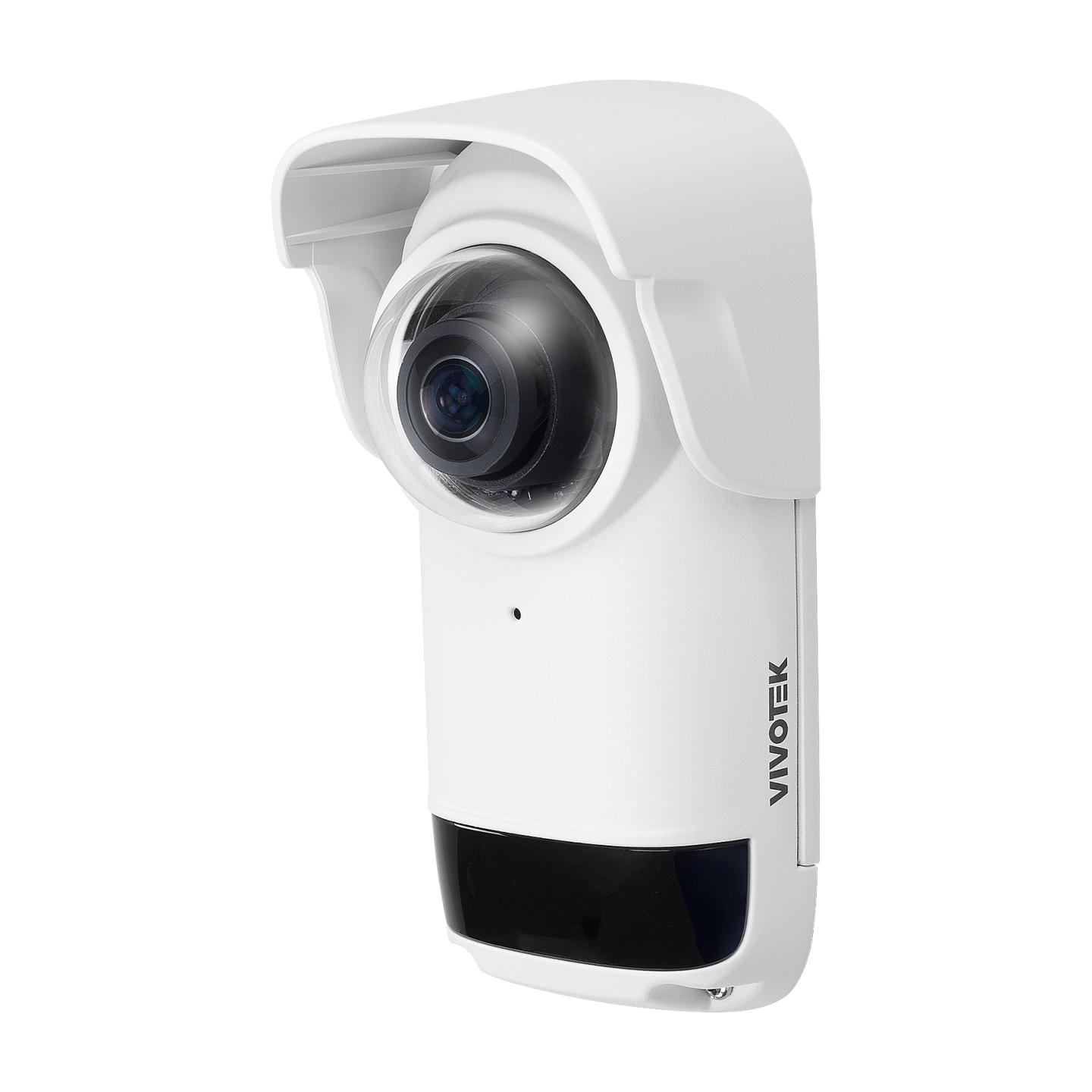

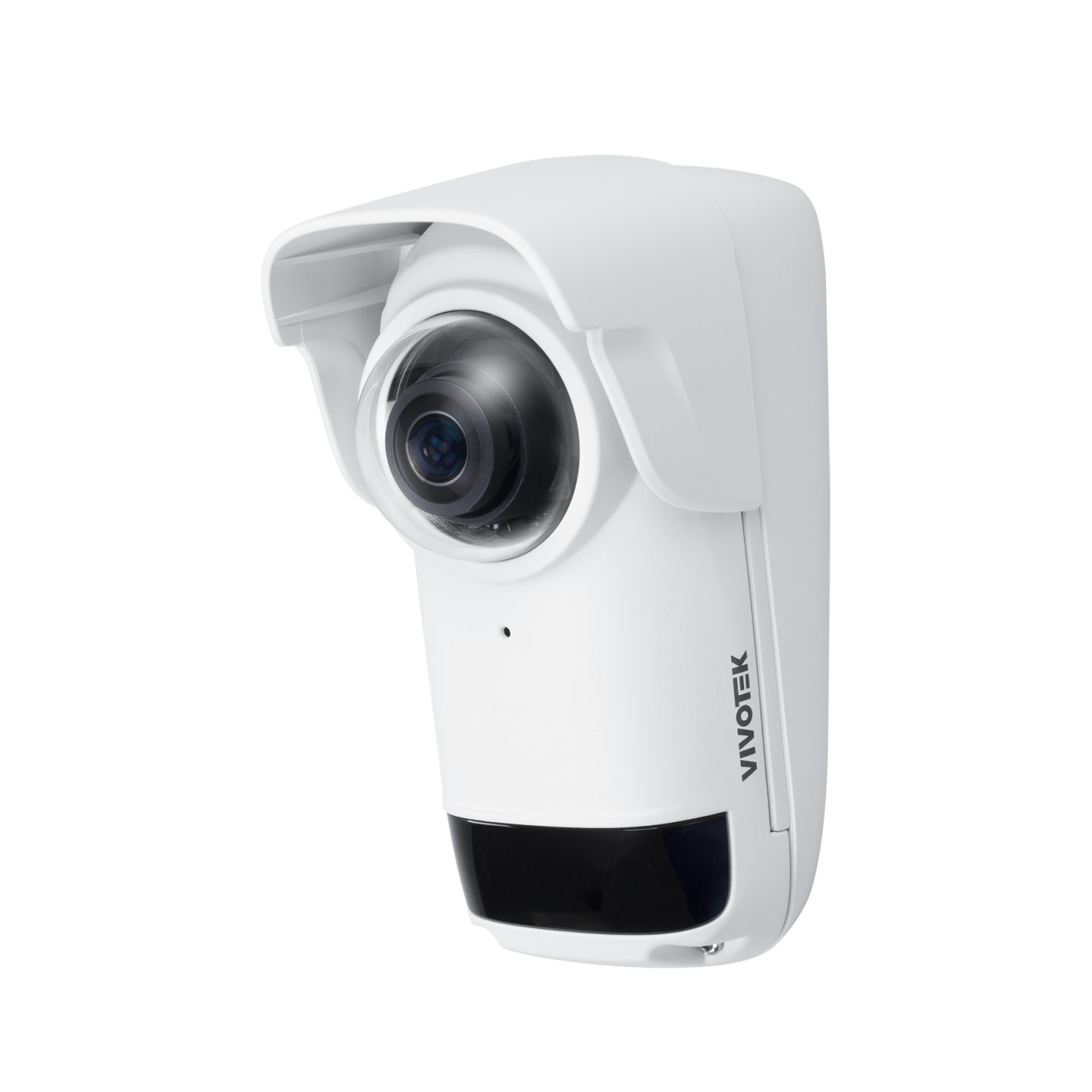

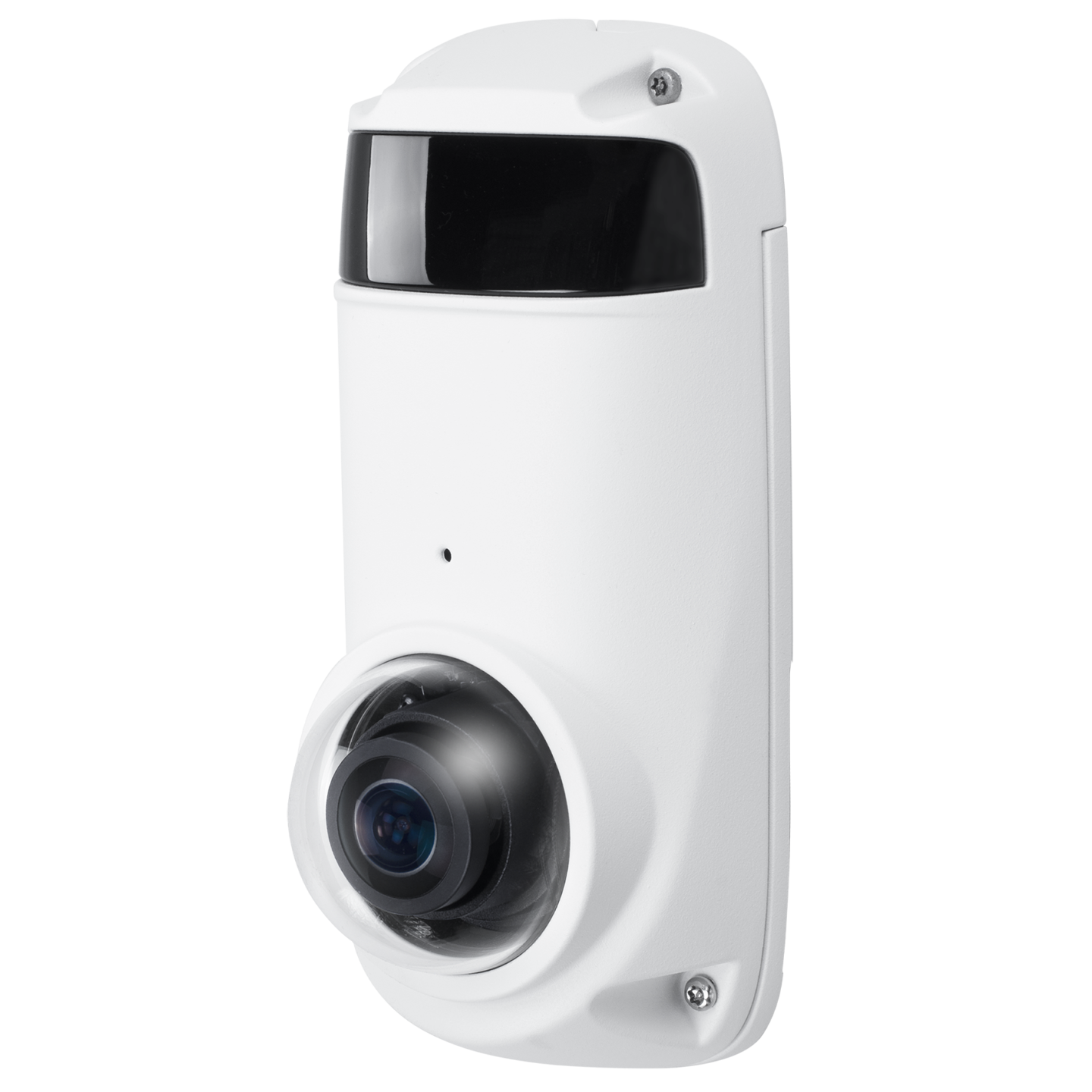

VIVOTEK CC9391-HV

System Information

CPU

Multimedia SoC (System-on-Chip)

Flash

8 GB

RAM

2GB

Camera Specifications

Image Sensor

1/1.8" Progressive CMOS

Max. Resolution

3840x2160 (4K/8MP)

Lens Type

Fixed-focal

Focal Length

f = 2.53mm

Aperture

F2.4

Iris Type

Fixed Iris

Field of View

180° (Horizontal)

103° (Vertical)

180° (Diagonal)

Shutter Time

1 sec. to 1/100,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut filter

Yes

Illuminators

Built-in IR illuminators up to 20 meters with Smart IR , IR LED*4

Minimum Illumination

0.08 lux (Color, 30IRE)

0.005lux (B/W 30IRE)

0 lux with IR Illuminators on

Tilt Range

±20°

Pan/Tilt/Zoom Functionalities

ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)

Storage

Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS)

Built-in Installation Aids

Pixel calculator

Video

Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 3840x2160

Maximum Streams

3 video streams (Up to 8 configurable profiles)

S/N Ratio

62 dB

Dynamic Range

120 dB

Video Streaming

Adjustable resolution, quality and constrained bit rate control, Smart Stream III

Image Settings

General settings

video settings, video orientation (flip, mirror, rotation), day/night settings, smart image

Overlay settings

Illuminators

illuminators, anti-overexposure

Image settings

white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)

Exposure

exposure strategy (measurement window, metering mode)

exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR

Privacy mask

Pixel calculator

Scheduled profile settings

Audio

Audio Capability

One-way Audio

Compression

G.711, G.726, MPEG-2 AAC-LC

Interface

Built-in microphone

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Security

Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management

Protocols

802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP

Interface

10Base-T/100 BaseTX Ethernet (RJ-45)

*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

ONVIF

Profile G, S, T supported, specification available at www.onvif.org

AI Analytics

Compute Capability

SoC with built-in hardware deep learning accelerator

Vision Object Analytics

Object Detection

People, Vehicle (4-wheeled, 2-wheeled)

Attribute Extraction

People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)

Re-Search Extraction

Path Extraction

Application

Deep Learning VCA (Smart Motion Detection, Smart VCA)

Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection

Application available with license

Running detection, Parking Violation Detection, Restricted Zone Detection

Support for more analytic applications and free trial, please visit vivotek.com/video-analytics

Solution Integration

VADP Package

Trend Micro IoT Security (3-year free trial)

Alarm and Event

Event Trigger

Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration

Event Action

Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card

File upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100 Mbps Network/PoE connection

LED Indicator

System power and status indicator

Power Input

IEEE 802.3af PoE Class 0

Power Consumption

Max. 10.83W/7.5W (IR on/off)

Dimensions

160 x 72 x 60 mm

Weight

492 g

Certifications

EMC

CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7

Safety

UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)

Environment

IK10 (IEC 60529), IP66 (IEC 60529)

IA

BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

Operating Temperature

Starting Temperature:

-10°C ~ 55°C (14°F~ 131°F)

Working Temperature:

-30°C ~ 55°C (-22°F~ 131°F)(IR on)

-30°C ~ 60°C (-22°F~ 140°F)(IR off)

Humidity

98% RH (non-condensing)

System Requirements

Operating System

Microsoft Windows 10/8/7

Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above

Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above

Included Accessories

Packing Contents

Quick installation guide, mounting bracket, tilt bracket, screw pack, sunshield

DORI (EN 62676-4 Standard)

Detection (25PPM/ 8PPF)

51.5 m (168.9 ft)

Observation (63PPM/ 19PPF)

20.6 m (67.5 ft)

Recognition (125PPM/ 38PPF)

10.3 m (33.7 ft)

Identification (250PPM/ 76PPF)

5.1 m (16.7 ft)
