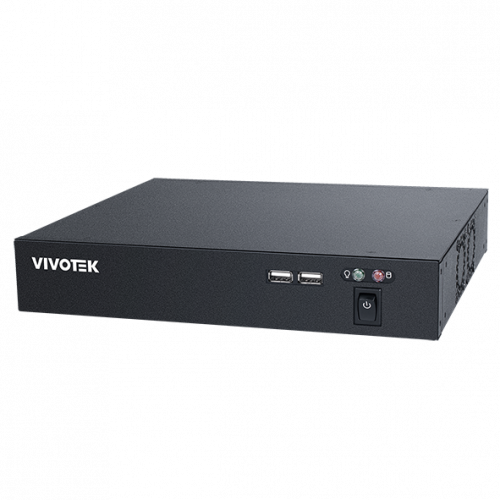

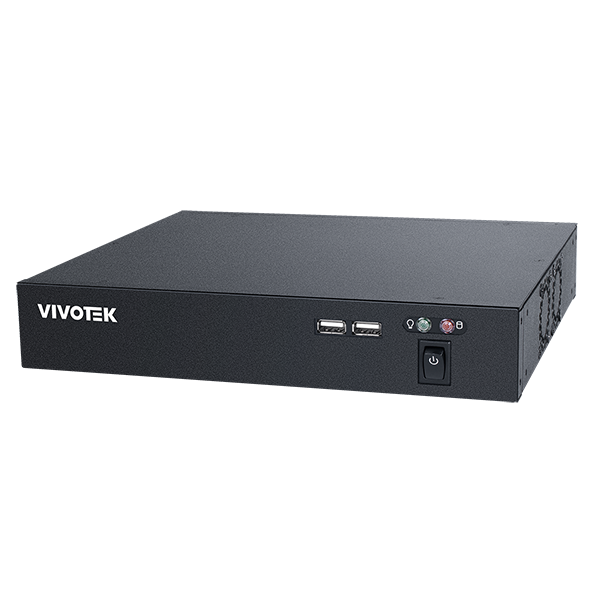

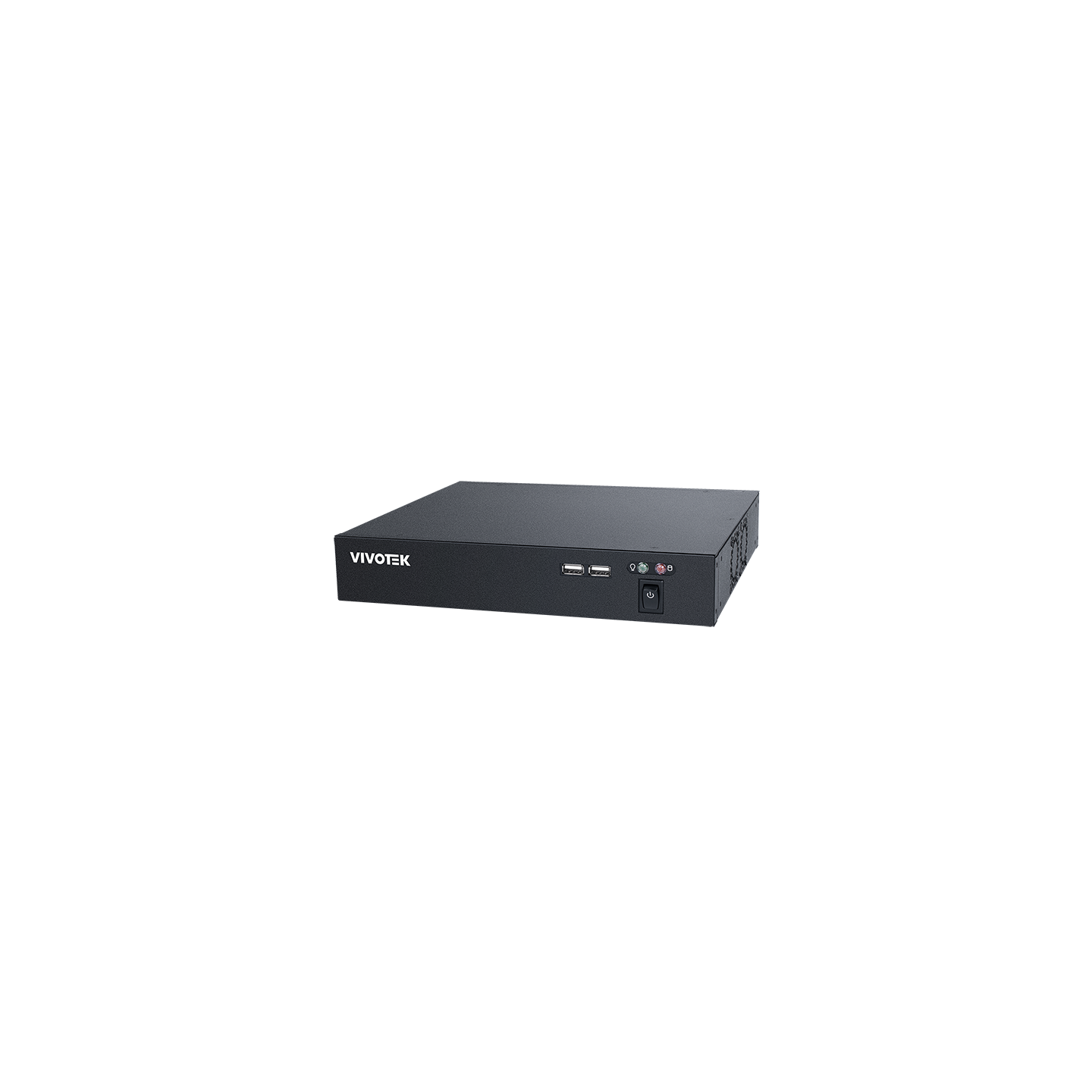

VIVOTEK IE9281-FM

    VIVOTEK IE9281-FM

    CMS de Reconocimiento Facial

    Contáctanos acerca de este producto

    Características principales

    • Sistema de gestión de contenidos
    • Admite hasta 256 dispositivos en un solo servidor
    • Compatibilidad con visualización local a través de HDMI e instalación de máquina virtual a través de USB
    • Fácil de integrar en su sistema
    • Ricos informes infográficos
    • Admite la instalación de montaje en rack

    Arquitectura del sistema

    IE9281-FM

    Detalle de productos

    Product Information

    Model

    IE9281-FM

    Hardware

    Intel CPU: Intel Core i7 (8th Generation) or higher, Memory: 32GB or above, HDD: 500GB or above

    OS

    Linux

    Maximum Number of Faces in Database

    50,000

    Network

    10/100/1000 Mb Network

    Maximum Number of Devices Connecting

    Up to: 256

    Power Input

    100-240V AC

    Power Consumption

    Max. 90W

    Dimensions

    250 x 44.2 x 225 mm

    Weight

    4 KG

    Safety Certifications

    CE, FCC, VCCI

    System

    Architecture

    Three Tier Server-client system:

    · Web Server

    · Application Server

    · Database Server

    Supported OS

    Ubuntu Server 20.04

    Supported Protocols

    HTTP & HTTPS

    Supported Hypervisors

    VMWare, Hyper-V, Virtual Box

    Container Type

    Docker

    Database Type

    MongoDB

    System Security

    · Single device login

    · Renewable session token

    · Hardened HTTPS

    Management Interface

    Interface

    Using Web client

    Supported Browsers

    · Google Chrome

    · Mozilla Firefox

    Languages

    · English

    · Japanese

    · Traditional Chinese

    Environment Adaptability

    Camera Installation Height

    · 3.0 meters max. camera height

    · Mounting position within 15 degrees incline

    Supported Image Modes

    Color & Monochrome

    Supported Devices & Integrations

    I/O Relay

    Moxa E1214

    · Advantech ADAM 60XX

    · VIVOTEK AO-20W I/O Device

    IP-to-Wiegand Converter

    · VIVOTEK AO-20W Wiegand Box

    HTTP Notifications

    Send customized GET/POST HTTP messages

    Others

    · Use VAST Face RESTful API

    Persons of Interest (POI) Management

    POI Management

    · Enroll person using Web client

    · Manage face profiles database through Web Portal

    POI Authentication

    · Using Face as a credential

    · Using Card Number

    POI Groups

    · Default groups: VIP, Blacklist, Staff

    · User defined person groups

    POI Batch Enrollment

    Supports bulk enrollment using Excel & JPEG files

    Enrollment Photo

    · Min. face size = 200 x 200 pixel

    Requirements

    · 1MB Max. photo size (.JPG or .PNG)

    POI Profile Information

    · Name, ID #, card #, job position, email, phone, POI group(s), and expiration date

    POI Reports

    Investigation Reports

    Generate facial recognition reports and filter events by:

    · Location

    · Time period

    · Name

    · POI Group

    · POI type (enrolled or stranger)

    Attendance Reports

    Generate staff clocking reports and filter events by:

    · Clock-in time

    · Clock-out time

    · Stay length

    · Late Arrival

    · Early Leave

    Actions Reports

    Generate a report for which pre-defined actions were triggered in response to an event.

    Export Data

    Export results to Excel file

    Trigger Rules and System Actions

    Rule Engine

    Rule based engine to trigger single or multiple system actions based on:

    · Event Location

    · Schedule

    · Detection time period

    · Specific POI profile

    · POI face group affiliation

    · Person type (enrolled or stranger)

    · POI is (not) a member of a group

    Supported System Actions

    · Trigger I/O Relay

    · Trigger IP-to-Wiegand converter

    · Send HTTP GET/POST command

    · WebSocket notification

    System Users Management

    System Users

    Register user accounts using Name, E-Mail address & Phone number

    System User Groups

    · System Administrator

    · Super User

    · Person Manager

    · Report Viewer

    · Welcome Page

    System Inter-Compatibility

    Supported Products

    · VIVOTEK VAST2 VMS/ CMS

    · VIVOTEK VAST Face CMS

    · VIVOTEK VAST FaceVisitor

    Facial Recognition Verticals

    Possible Applications

    · Identify potential troublemakers (shoplifters, criminals or any other barred individuals)

    · Detect VIP members upon arrival to deliver a tailored experience

    · Provide physical entry to commercial buildings, residences, and other rooms

    · Contactless staff clock in system

    · Verify visitor’s identity
