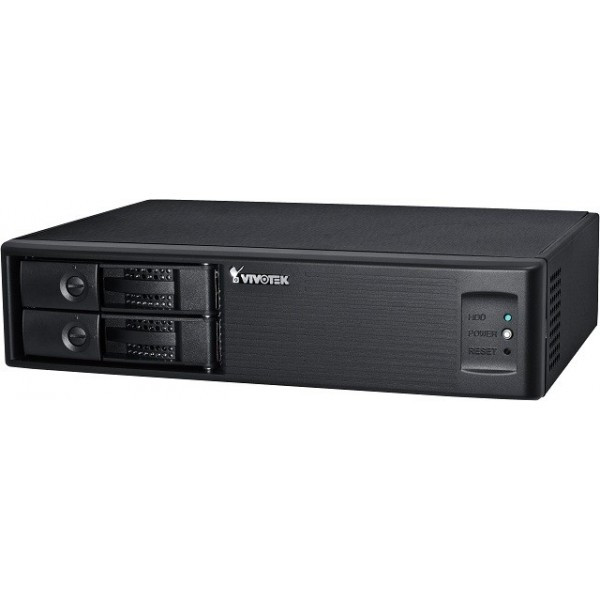

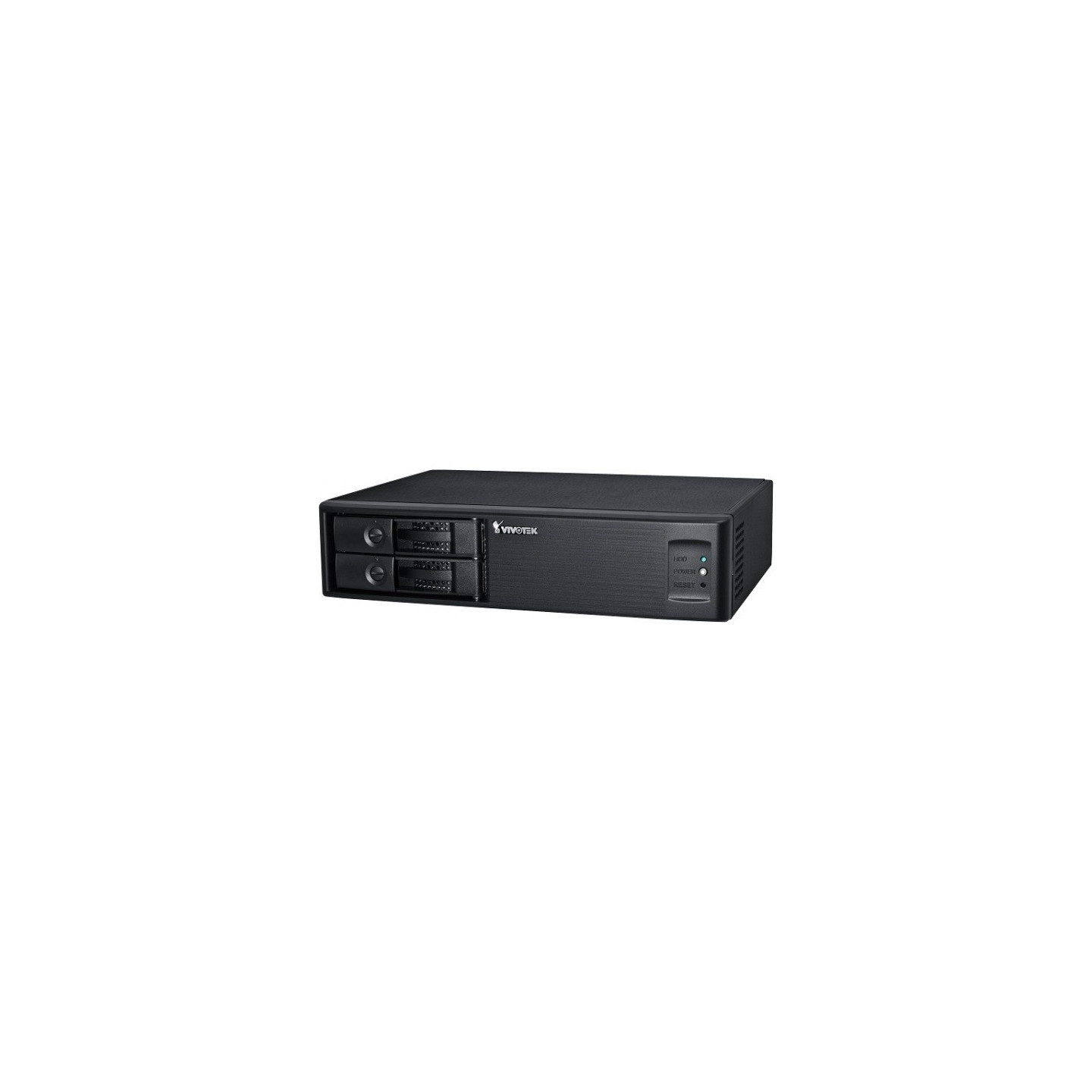

VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías

VIVOTEK ND8301 NVR 8 Cámaras IP 2 Bahías

La ND8301 de VIVOTEK es una Grabadora de vídeo para red de 8 canales proyectado para aplicaciones sofisticadas de grabación. Esta grabadora está equipada con un Procesador Intel Atom Dual-core con una velocidad de grabación máxima con robustos 96 Mbps.

Contáctanos acerca de este producto

Características - Hardware

  • Procesador Dual-core Intel AtomTM
  • RAID 0,1 para una grabación eficiente y confiable
  • Bandeja con 2 compartimientos para discos duros amovibles, máx. 6TB
  • Interfaz eSATA externa
  • Pantalla local completa para visualización en Full HD
  • Diseño de la NVR tipo desktop standalone
  • Puertos Ethernet Dual Gigabit
  • 4 puertos USB
  • Tamaño compacto: 315 mm (A) x 220 mm (P) x 75 mm (A)



Características - Software

  • Fácil instalación y configuración (Shepherd/Setup Wizard)
  • VAST instalado (LiveClient/Playback)
  • Visualización en vivo en tiempo real de 8 canales y Reproducción sincronizada de 4 canales
  • SVC/H.264, MPEG-4 y MJPEG
  • Múltiples tipos de grabación y fuentes del accionador de eventos
  • Múltiples modos de búsqueda de vídeo
  • E-map
  • Soportado por software de administración central VAST
  • Integración completa con cámaras para red VIVOTEK
  • Soporte para VIVOTEK iViewer (iOS/Android)

Detalle de productos

System

CPU: Dual-core Intel® processor

RAM: 2GB DDRIII

OS: Windows 7 embedded

Power Restoration: System restart automatically after Power Recovery

System Recovery: Recover operating system after restart every time

channels

8-CH selectable

Storage

2 x 3.5" HDD, up to 8TB

2 x hot-swappable hard disk tray

HDD S.M.A.R.T.(Self-Monitoring Analysis and Reporting Technology)

RAID 0, 1

External eSATA storage

Connectors

1 x VGA for Full HD local display

2 x Gigabit RJ45 Ethernet port

4 x USB 2.0 port

1 x RS232

1 x eSATA

1 x MIC in and line in

1 x line out

Camera Compatibility

Integrates with VIVOTEK & ONVIF network cameras

EasySetup

"Setup Wizard" for network/HDD/camera easy setup

"IW2" for search internal camera

"Shepherd" for duplicating the camera's configuration to multiple cameras

Networking

IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS

Recording

Throughput: Max. 96 Mbps

Recording policy: scheduled (event/continuous modes) and manual recording

Video compression: H.264/MJPEG/MPEG-4

Audio compression: AMR/G.711/G.726/AAC

Resolution: Up to 5-Megapixel recording

Format: 3GP

Auto recycling: buffer size setting, time setting

Activity adaptive recording

Export

Format: AVI/3GPP/EXE

LiveView (Local Display)

Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12

Rotate

Snapshot

Two way audio control

PiP video control

Stream selectable

Set DO control

Video enhancement

Pan/Tilt/Zoom control of VIVOTEK cameras

Preset location

Auto pan/patrol

Event popup windows

Instant event notification

Display performance:

MJPEG: 16-CH, 30 fps @ CIF

MPEG4: 16-CH, 30 fps @ CIF or 2-CH, 30 fps @ 1080P

H.264: 7-CH, 30 fps @ CIF or 1-CH, 30 fps @ 1080P

Auto stream size

Playback (Local Display)

Display layout: 1X1

Playback mode: play, pause, stop, next/frame, next/previous, speed control

Search mode: browsing, time, event, bookmark

Graphical timeline

Snapshot

Bookmark design

PiP video control

Video enhancement

Log viewer

LiveView (Remote)

Display layout: 1X1, 2X2, 3X3, 4X4, 1+5, 1+12

Snapshot

Pan/Tilt/Zoom control of VIVOTEK cameras

Simple camera and recording settings

Playback (Remote)

Display layout: 1X1

Playback mode: play, pause, stop, speed control

Search mode: browsing, event

Graphical timeline

Event Action Management

Trigger source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status

Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command

Security

5 levels of user roles

Multi-level user access with password protection

Device buzzer notification (HDD/network)

Backup

Manual/scheduled backup

Mobile APP Support

VIVOTEK iViewer (iOS/Android)

Dimensions

315 mm (W) X 220 mm (D) X 75 mm (H)

Weight

Net: 2270g without HHD

LED Indicator

1 x power status

1 x HDD status

Approvals

CE, FCC Class B, VCCI, C-Tick

Operating Environments

Temperature: 0°C ~ 40°C ( 32°F ~ 122°F )

Humidity: 20%~95% RH

Warranty

24 months

Language Support

English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portugal, Czech
